Project to Intercompare Regional Climate Simulations
(PIRCS)

PIRCS Experiment 1



MOTIVATION

The intent of the first experiment is to provide a first comparison of how well regional models represent aggregate characteristics of weather events in a simulation long enough to include many such events, i.e. resolve climate. To this end, the experiment is designed to be relatively simple to perform and diagnose thereby facilitating wide-spread participation and the establishment of a framework for ongoing intercomparison. The experiment will contain the strong climate signals of persistent extreme events, which are expected to simplify the intercomparison by focusing diagnosis on dominant processes during these events.

This intercomparison is being coordinated by the International Institute of Theoretical and Applied Physics (IITAP), which has a goal of promoting the application of forefront scientific tools to practical problems facing scientists in developing countries. The initial experiment focuses on a primarily agricultural region with significant vulnerability to growing season precipitation, a problem common to most developing countries. Accordingly, one emphasis of the intercomparison will be diagnosing the simulation of hydrologic processes. In order to complement related research programs, the initial experiment is also designed to overlap with activities of COMPARE, GEWEX (specifically G-NEG and GCIP) and AMIP.

LOCATION

The first experiment will focus on the central United States, a region of intense cultivation containing a major watershed, the Mississippi River basin. It is a region that has experienced episodes of both extreme drought and extreme flooding within the past 10 years. This region is also the focus of GCIP and planned activities by G-NEG.

PERIOD

The first experiment will contain two periods: the summer of 1988 drought (Expt. 1a) and the summer of 1993 flooding (Expt. 1b). Experiment 1a emphasizes thermal processes, whereas Experiment 1b emphasizes processes of the water cycle. Initial simulation and diagnosis will focus on the summer of 1988, but the coupled diagnosis of opposite extremes will constitute a more complete analysis of the systematic behavior of participating models. Simulations will be initialized using gridded analyses for 15 May 1988 and 1 June 1993 and will last 60 days. The starting dates represent times by which persistent circulation features for each summer had become established.

SIMULATION DOMAIN

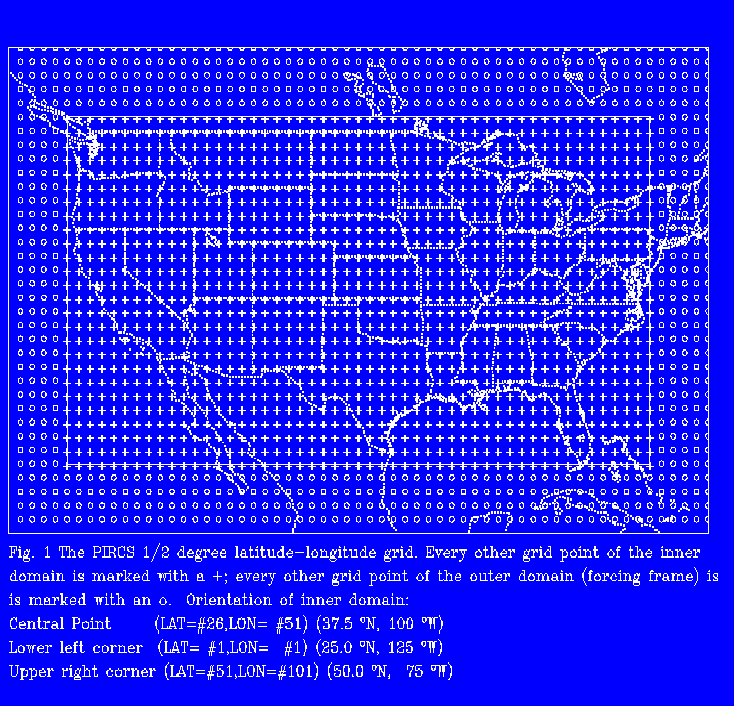

The simulation domain will consist of two parts: a forced outer frame and a "free" inner domain. Diagnostics will be computed for the inner domain. The standard inner domain will be given by a 51 (N-S) x 101 (E-W) lat-lon grid with 1/2 degree resolution, with the central point located in the middle of the U.S. (lat. grid #26, lon. grid #51) = (37.5 N, 100 W) (Fig. 1).

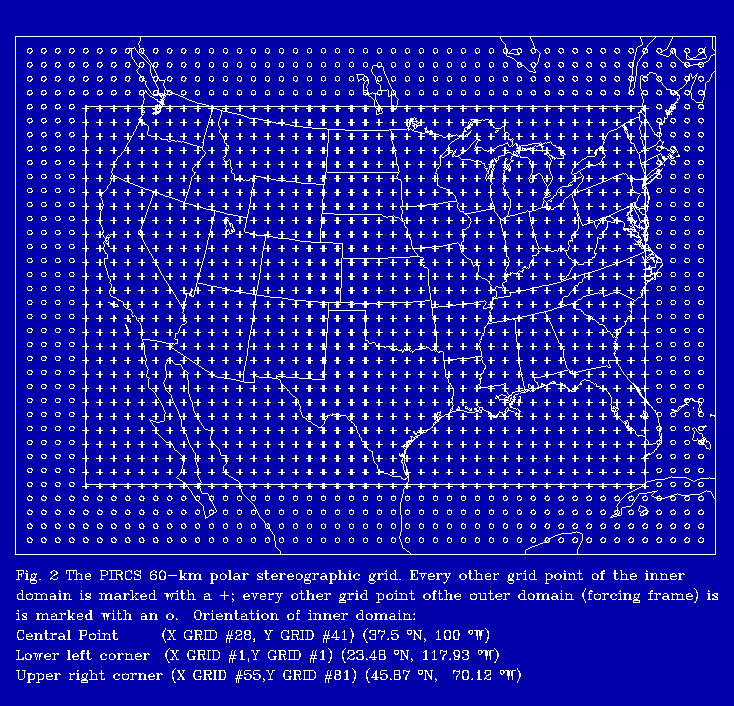

The PIRCS support staff has designed a nearly equivalent inner domain for models using:

Precise structure of the inner and outer domains may vary between models depending on their numerical procedures. It is expected that participants in the intercomparison will use the lateral boundary conditions given in the outer frame as appropriate for their model and that no model will include explicit external forcing within the domain covered by the standard "free" grid.

In the vertical direction, each model will use its own coordinate, grid and resolution: there is no standard vertical grid.

ATMOSPHERIC INITIAL AND LATERAL BOUNDARY CONDITIONS

The PIRCS support staff will provide initial conditions for the simulation domain described above from re-analysis output produced by the U.S. National Meteorological Center. In order to facilitate the participation of a wide variety of models, and guided by the COMPARE program, PIRCS will distribute data on three grids: a background, global grid at 2 1/2 degree resolution, forcing-frame (outer domain) data at 1/2 degree resolution on the lat-lon grid, and forcing-frame data at 60 km resolution on the polar stereographic grid. Data for lateral boundary conditions will be provided every 6 hours.

The variables provided will be the horizontal wind components (u, v), temperature T, specific humidity q, the surface pressure p_sfc of the reanalysis model and the topography used by the re-analysis model. Data will be provided at 25 mb resolution. PIRCS will provide the algorithm for vertical interpolation of surface pressure to the individual model's topographic height.

SURFACE CONDITIONS

The PIRCS support staff will provide soil-moisture for initial conditions and periodic ocean and lake surface temperatures for lower boundary conditions. For a number of reasons, precise determination of the field of soil moisture on each starting date will be difficult. The soil-moisture conditions that will be distributed are intended to provide a consistent, reasonably accurate initial condition for all models. Therefore, while these values can be converted to units appropriate for each model, they should not be adjusted toward drier or more moist conditions.

For simplicity, each modeling group is encouraged to use their model's topography and land characterization procedures already established for this region, if they exist. The PIRCS support staff, however, will provide a reference topography and land-characterization dataset for participants needing this information.

CONVECTION AND RADIATION

The choice of cumulus convection and radiation schemes is left to each modeling group.

DIAGNOSTICS

Modelers submitting output to PIRCS should read and adhere carefully to the format for transmitting model output to the PIRCS archive.

Primary diagnostics will consist of heat, moisture and energy budgets on scales finer than typically resolved by global models. All spatially varying output should be reported on the model's grid for the inner domain. The PIRCS archive will collect from each participating group a standard archive (Table 1). The archive emphasizes mesoscale circulation and diurnal cycles of energy and moisture fluxes at the surface. A supplemental data set ( Table 2) is also requested from those with the means to assemble it.

Participants will be strongly encouraged to save at their institutions hourly histories of the prognostic variables. PIRCS requests that archives contain sufficient history information so that comparisons that are either unanticipated by PIRCS or that go beyond the scope of the initial comparison may still be performed. Examples of the latter would include analysis of vertical fluxes of heat and moisture generated by convection and their impact on resolved dynamics and study of the interaction between clouds in the planetary boundary layer (PBL), radiation and other PBL processes.

For Expt. 1a (drought year), diagnostic emphasis for the intercomparison will be on the evolution of the thermal processes across the domain, as characterized by the surface and atmospheric thermal energy budgets. A comparison of hydrologic processes for this case of weak hydrologic cycle will also be performed, but it is expected that this comparison in particular will not be complete until the strong hydrologic cycle of the 1993 flood period is also simulated and diagnosed.

FINAL NOTES

FURTHER INFORMATION
